The most versatile configuration of Nocturn for a broad range of applications.
Versatile video output interfaces; digital: 10/8-bit CameraLink® and analog: NTSC/PAL.
The Nocturn XL camera core is powered by the Lynx CMOS imaging sensor, optimised for low light level imaging.
Technical information
|
Camera |
Specifications |
|---|---|
|
Sensor |
Monochrome Lynx CMOS sensor |
|
Frame rate |
50, 60, or 100 Hz |
|
Size |
34 x 36 x 37 mm |
|
Weight |
< 85 g |
|
Digital Video Output |
10/8 bit Base CameraLink® compatible |
|
Analog Video Output |
NTSC/PAL |
|
Communications |
Serial via CameraLink® compatible interface or USB |
|
Power Input |
+5 to +15 VDC |
|
Power (W) |
1.8 W (50/60 Hz), < 2.25 W (100 Hz) |
|
Optical interface |
1” format, can be adjusted for 2/3” or 1/2" format |
|
Operating temperature |
-40° C to +60° C |
|
Storage temperature |
-50° C to +80° C |
Description

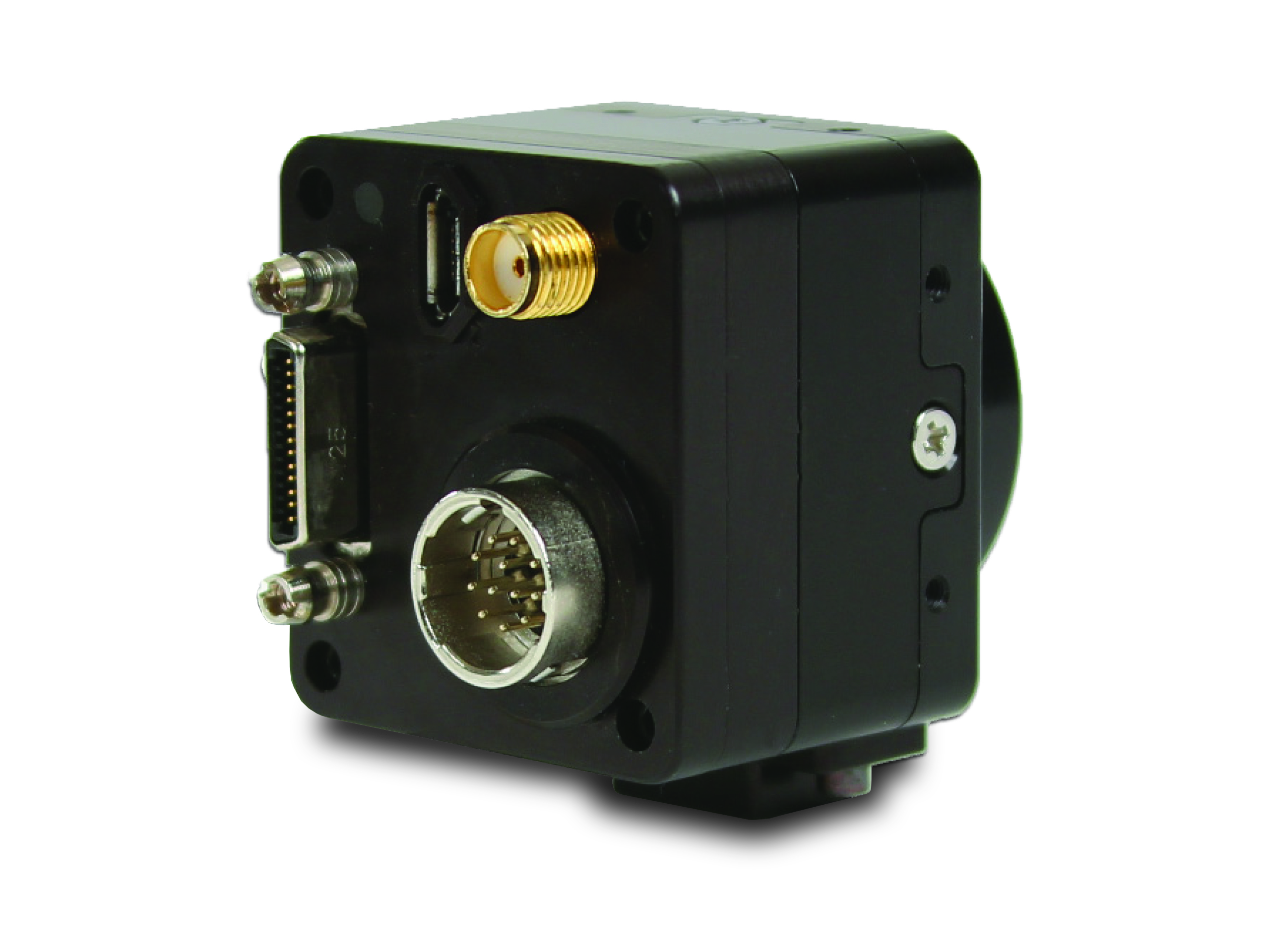

The Nocturn XL camera core has an integrated interface board that can be used to output digital video over a Camera Link® compatible interface as well as NTSC/PAL composite video.
The Nocturn XL Camera is powered by the Lynx CMOS imaging sensor, optimised for low light level imaging.
The Nocturn XL is a ruggedized passive low-light camera module that features high-definition, high sensitivity and high dynamic range with low power consumption. It provides monochrome real-time imaging capabilities from daylight to bright starlight in the visible and near infrared spectrum. Its small size, weight and power (SWaP) makes this camera module ideal for integration into aerial, mobile and hand-held surveillance systems.
Feartures
- Ideal for 24/7 operations
- Less than 4e-read-out noise
- 860 nm and 1064 nm laser line detection
- HD format (1.3 Mpx)
- 100 fps
- Digital zoom up to 8x
Customization
Could not find the camera solution that fits your needs?
We offer a custom camera for your specific application based on a project. Please contact us for detailed information.
Documentation
Application Note
AN - Nocturn Contrast Tutorial(5.44 MB)
AN - NOCTURN External Sync(931.17 KB)
AN160708-1 NOCTURN Communication Protocol(427.45 KB)
Nocturn reticle implementation(806.1 KB)
Optics recommandation for NOCTURN(971.83 KB)
Specifications
LYNX CMOS Sensor Specification(4.1 MB)
NOCTURN XL Specifications(372.53 KB)
Brochure
NOCTURN Cameras Brochure(726.69 KB)
Datasheets
NOCTURN XL Control GUI User Guide(1.76 MB)
NOCTURN XL Engineering Guide(1.17 MB)
NOCTURN XL ICD(1.4 MB)
Related Applications
Homeland Security
Law Enforcement
Long Range Surveillance
Night Vision Applications
Day to Night Digital Sights
Driver's Vision Enhancement
Drones (UAV/UGV)
Helmet Mounted Digital Vision
Homeland Security
Law Enforcement
Long Range Surveillance
Low Light Level Imaging [IND]
Metrology
Missile detection warning system
Vehicle (Land/Sea/Air)
Transportation Systems / Automotive
Did you know?
Many users and OEMs have been using the Nocturn XL for their applications.
