Pulsed Traveling Wave Tubes

For higher peak RF power required by radar, radar jamming and other pulsed RF applications, Photonis Defense offers pulse mode TWTs at various frequency, power level and duty cycle levels.

Operation in Pulse Mode
Offered in varying frequency and power levels
Uses include: many radar, radar jamming, and pulsed RF applications

Technical information

Part
Number
Frequency
Band
(GHz)
Peak
Power
(W)
Gain @
Rated
Power
(dB)2
Cathode
Voltage
(V)
Cathode Current
(A)
Grid
or Focus
Voltage
(V)
Max
Duty
Cycle
(%)
Number of
Collector
Electrodes
Weight
(lbs)
Size
L x W x H
(inches)
2154 4.0 – 8.0 1000 28 -9750 1.8 -150/+150 4.0 1 10.0 14.5 x 3.2 x 2.7
2213 2.0 – 4.0 1000 35 -7800 1.8 -150/+150 3.0 1 6.5 Ø2.2 x 18L
2214 4.0 – 8.0 1000 28 -9750 1.8 -150/+150 3.0 1 10.0 Ø2.64 x 15L

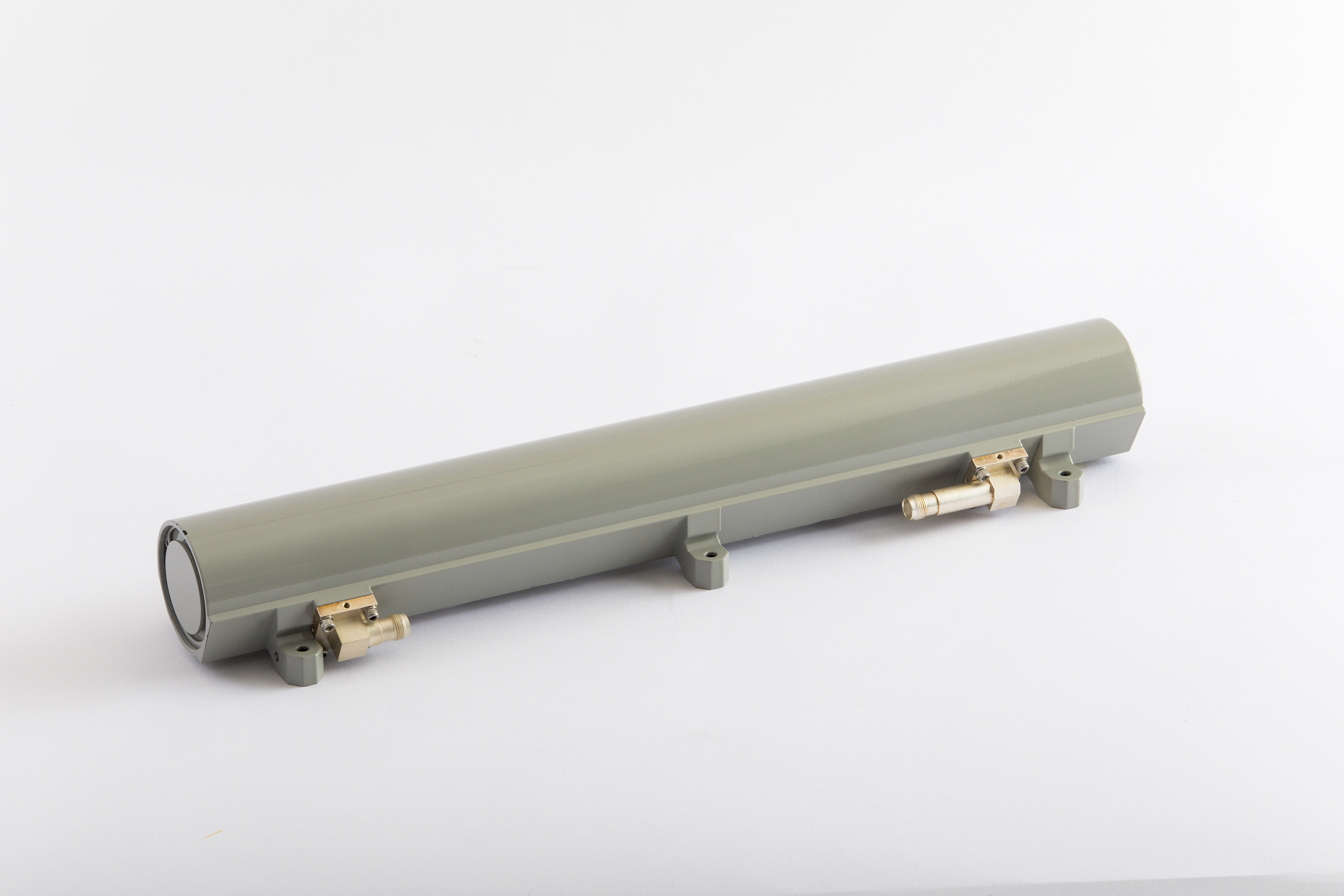

2246 2.0 – 4.5 1000 35 -7800 1.5 -150/+150 4.0 1 7.5 17.3 x 3.6 x 2.4
2301 8.0 – 18.0 1000 45 -11000 1.8 -150/+150 4.0 1 6.0 15 x 1.7 x 2.4
2413 6.5 – 16.5 400 50 -6600 0.8 -150/+95 7.0 1 2.5 11 x 1.5 x 1.5
2454 2.5 – 7.0 200 34 4000 0.33 -50/+150 100 4 3.8 13.6 x 2.4 x 1.9



Description

These helix type Pulsed Traveling Wave Tubes (TWTs) provide superior wide-band and peak power performance. Our Pulsed Traveling Wave Tubes are of metal-ceramic construction for severe environmental conditions and utilize rare earth periodic permanent magnets for power-free focusing. This combination creates a rugged, light weight device suitable for any military airborne or ground-based platform. Photonis Defense offers an extensive selection of fully developed designs but will also work with you to design a TWT to meet your specific requirements.

Pulsed Traveling Wave Tubes and Voltage Regulators

Documentation

Specifications

Brochure

Microwave Power Products(PDF file, 522.83 KB)

Related Applications

Electronic Counter Measures
Electronic Warfare
RF Generation (Defence)
Defence Communication
