Miniature Traveling Wave Tubes

Photonis Defense has been manufacturing Traveling Wave Tubes (TWTs) since their invention in the early 1940s. The company began making Miniature Traveling Wave Tubes in 1972 and developed the first micro TWT in the early 1980s.

Support applications from approximately 2 to 18 GHz
Provide high power amplification across specific frequency ranges
Ideal for portable and mobile applications where SWaP is considered

Technical information

PART
NUMBER
FREQUENCY
(GHz)
OUTPUT
POWER
(WATTS)
GAIN (dB) CATHODE
VOLTAGE
(KV)
COLLECTOR VOLTAGE
(KV)
CATHODE Current (AMPS)
2169 7.0-17.5 22 47 -3.90 -1.95 0.115
2223 9.45-10.55 70 55 -4.20 -2.10 0.125
2233 14.35-15.55 70 55 -4.50 -2.25 0.126
2268 8.0-18.0 20 37 -3.90 -1.95 0.115
2279 14.0-14.5 75 60 -4.70 -2.35 0.130

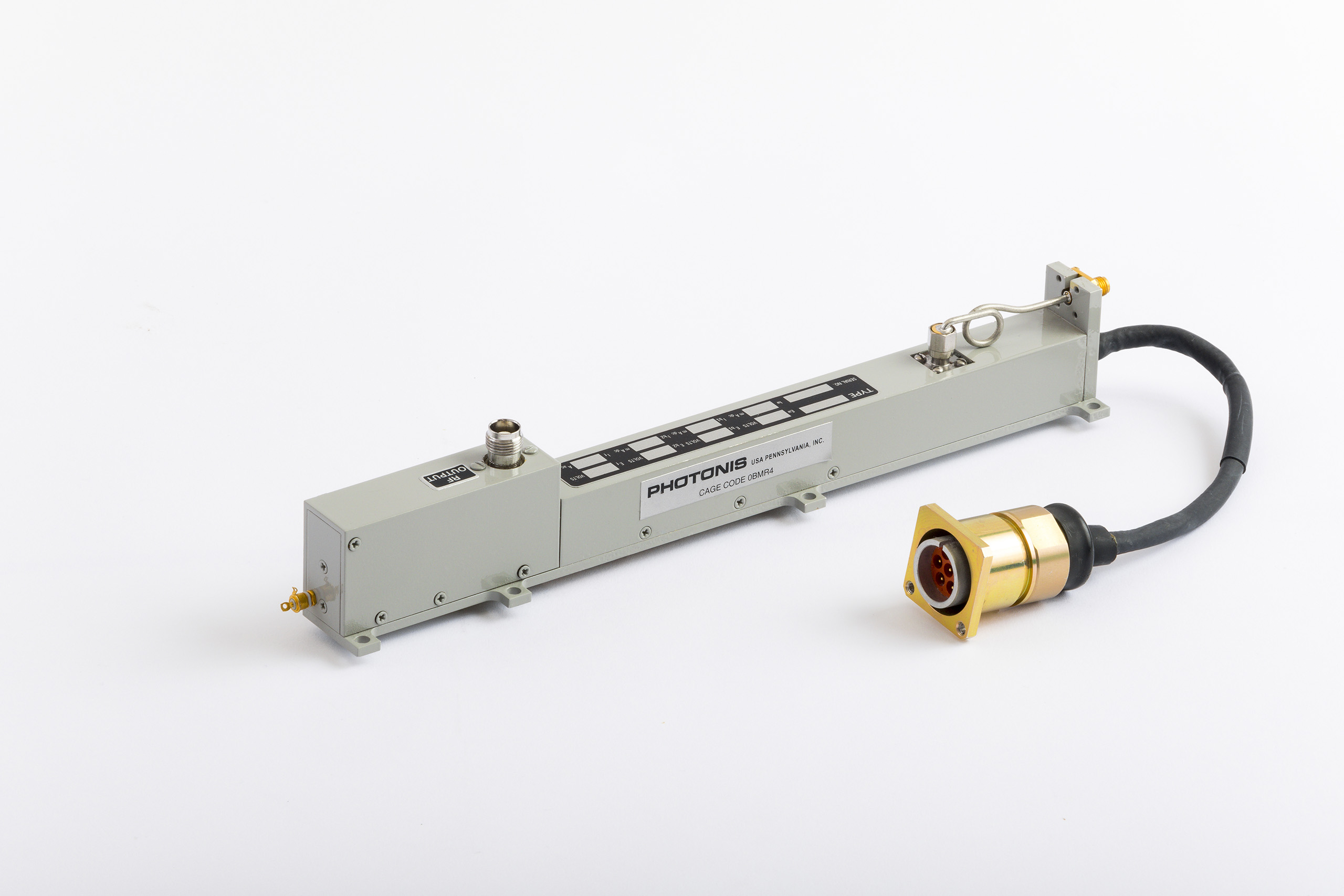

2315 7.5-16.0 70 40 -5.20 -2.5, -3.1 0.160
2320 9.7-15.4 50 47 -4.30 -2.20 0.150
2414 6.0-18.0 100 31 -6.35 -3.18 0.215
2438 2.0-6.0 150 30 -3.00 5-Stage 0.220
2441 6.0-18.0 70 60 -4.30 5-Stage 0.160
2443 6.0-18.0 100* 38 -4.30 -2.15 0.165



Description

Photonis was the first Vacuum Electron Device company to apply fast warm-up technology to Miniature Traveling Wave Tubes (TWTs) in a production environment. Our miniature TWTs are helix-type and feature periodic permanent magnets or PPMs for power-free focusing. These miniature TWTs are conduction cooled and are capable of supporting applications from approximately 2 to 18 GHz. Ideal for portable and mobile applications where SWaP is considered, Photonis’ miniature TWTs provide high power amplification across specific frequency ranges. These TWTs are typically used for electronic countermeasures, radar applications, airborne military platforms, rack mount amplifiers, communications, and SatCom.

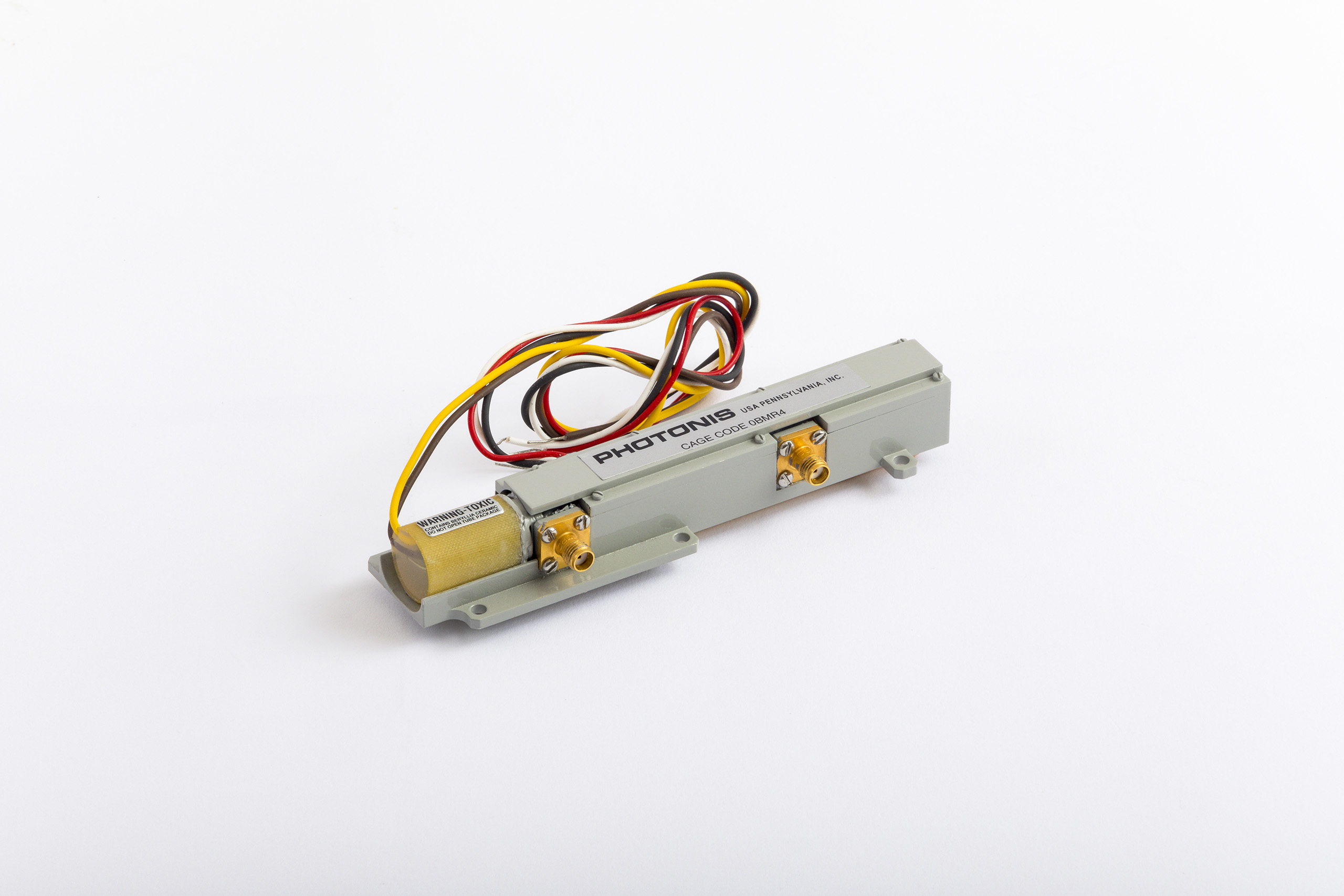

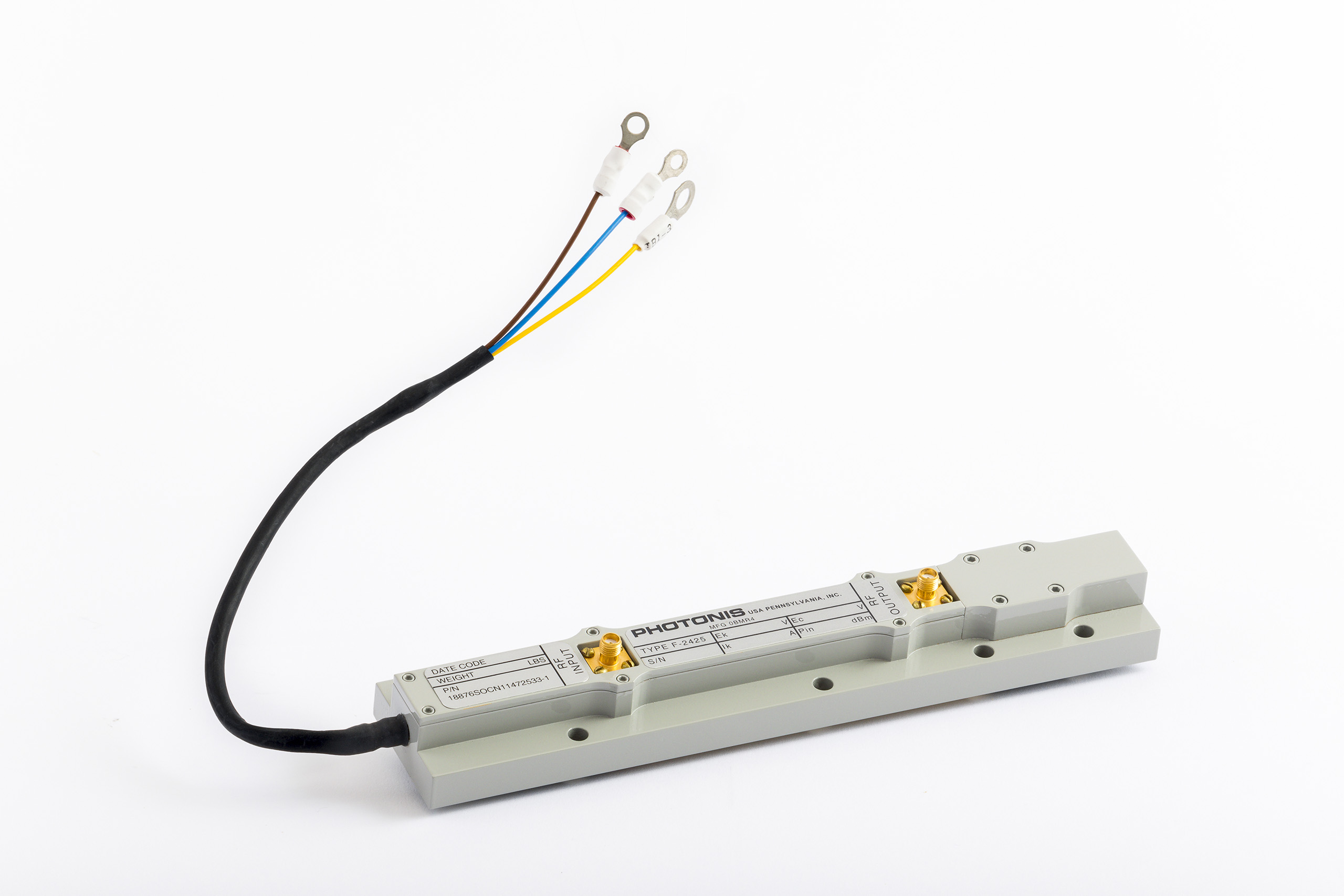

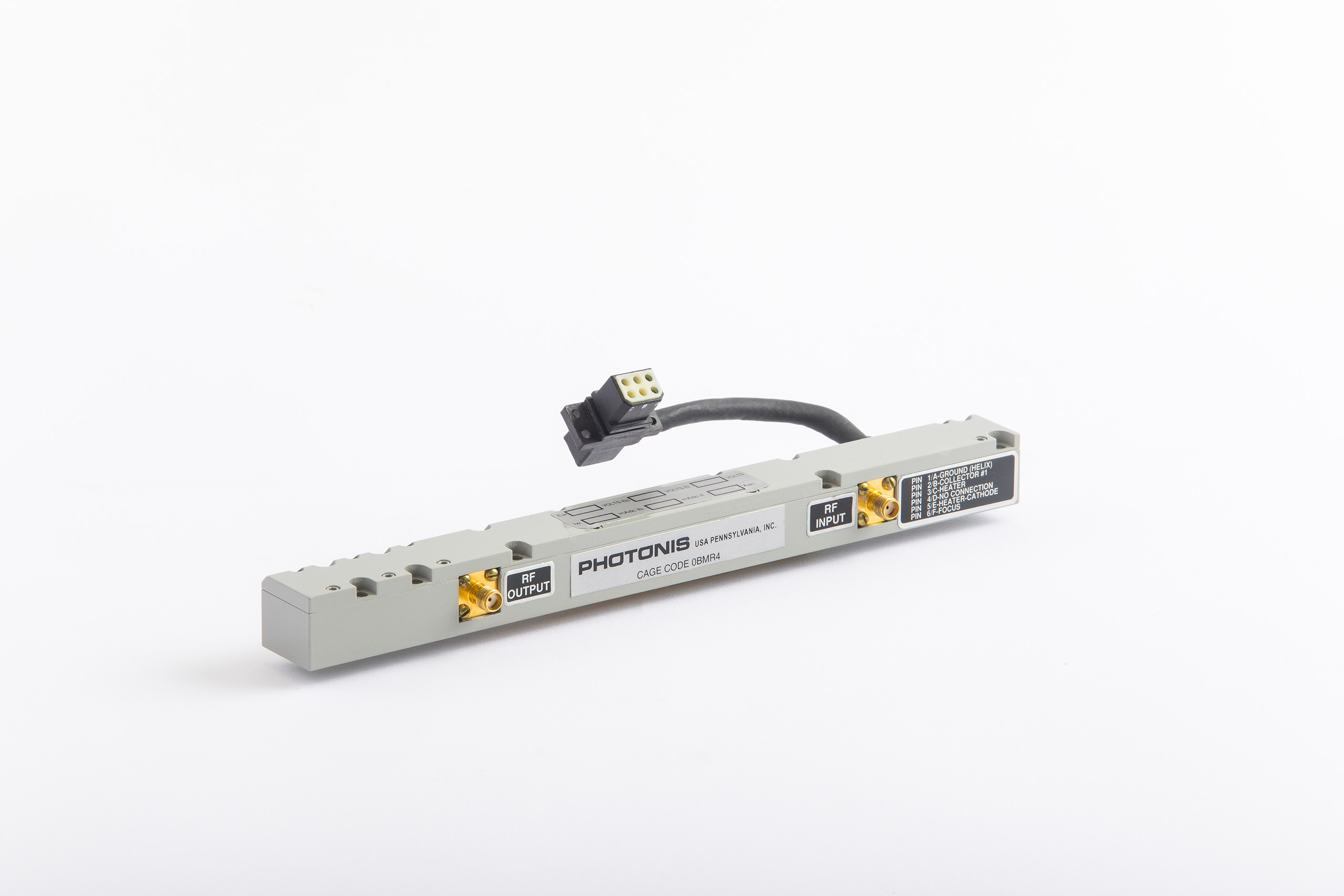

Mini Traveling Wave Tubes

Documentation

Brochure

Microwave Overview Brochure(PDF file, 2.75 MB)

Specifications

Miniature Traveling Wave Tubes(PDF file, 166.4 KB)

Related Applications

Electronic Counter Measures
Electronic Warfare
RF Generation (Defence)
Defence Communication
