Hybrid Photo Diodes

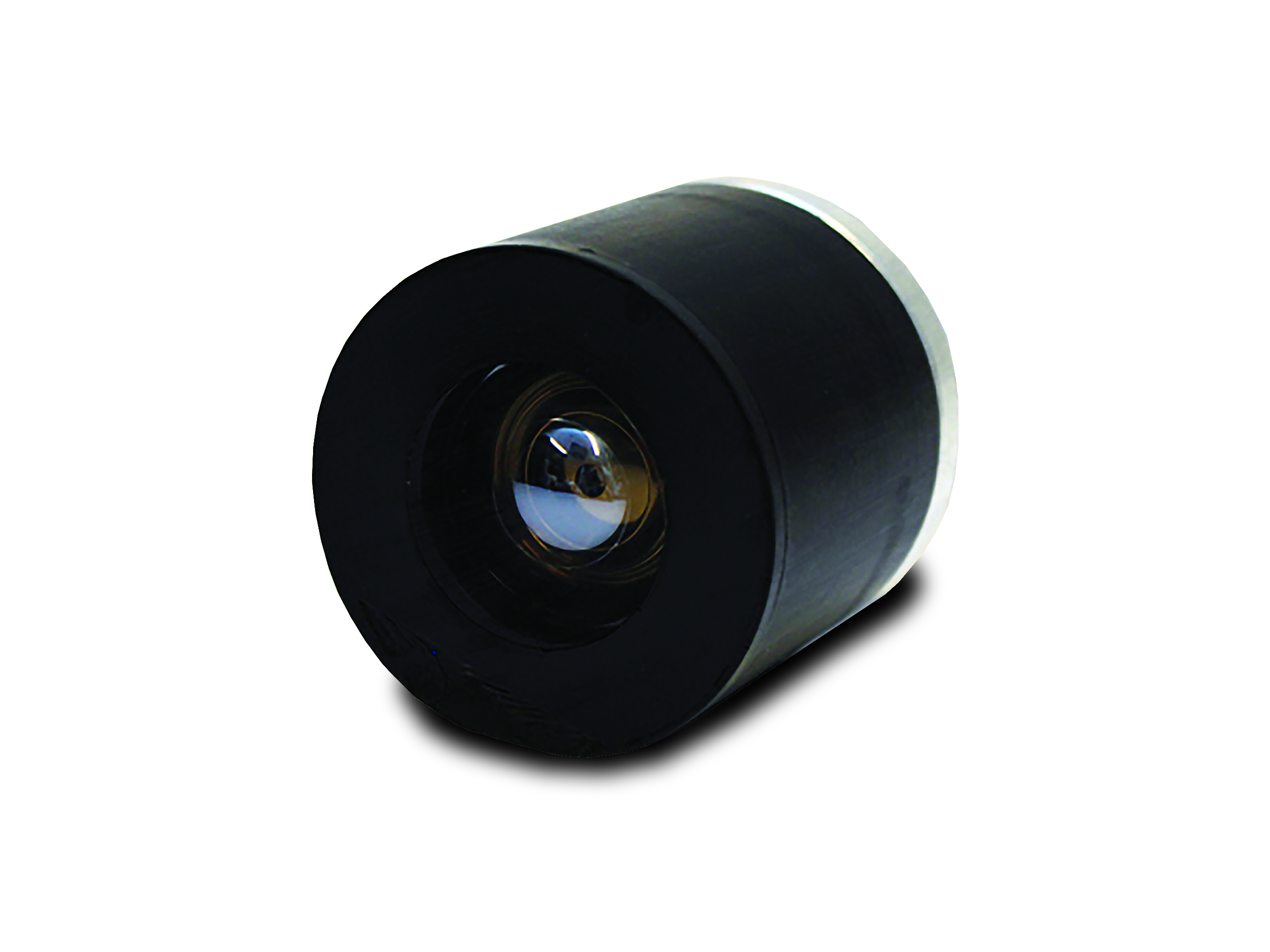

HPDs combine vacuum-based image intensification techniques with a silicon diode to provide maximum photon amplification while virtually eliminating additional noise.

Proximity or electrostatic focus
Large detection area (16, 18, 25. 40 or 72 mm)
Single or multi-stack MCP configuration
Single or multi-pixel configuration
Hi-QE photocathode option

Technical information

The Hybrid Photo Diode can be customized in a number of ways. If you need assistance with ordering a custom detector, please contact us and an application engineer can assist you.

Specifications
FOCUS TYPE Electrostatic or Proximity focused
MCP size 16, 18, 25, 40, or 72mm MCPs are available
Multi MCPs Multiple MCPs can be ordered in Chevron (2) or Z-stack (3) configurations
Pixels Single or multi-pixel configurations are available
Photocathodes A wide variety of photocathodes are available, including our exclusive Hi-QE option



Description

Superior photon detection with nearly zero noise

Hybrid Photo Diodes provide excellent single photon detection capability with good linearity and fast timing. A wide range of models are offered to ensure you capture every available photon.

Hybrid Photo Diodes detect the greatest amount of photons with virtually no added noise. Hybrid Photo Diodes combine vacuum-based image intensification technologies with a silicon diode. Photonis offers a wide range of standard and custom detectors that are specifically designed for your application.  Options include focus type, optic entry window, photocathodes, MCP configurations and pixel configuations. Power supplies and cameras can also be ordered to support your specific application. Hybrid Photo Diodes are well-suited for high energy physics research, specialized medical imaging or space exploration.

Did you know?

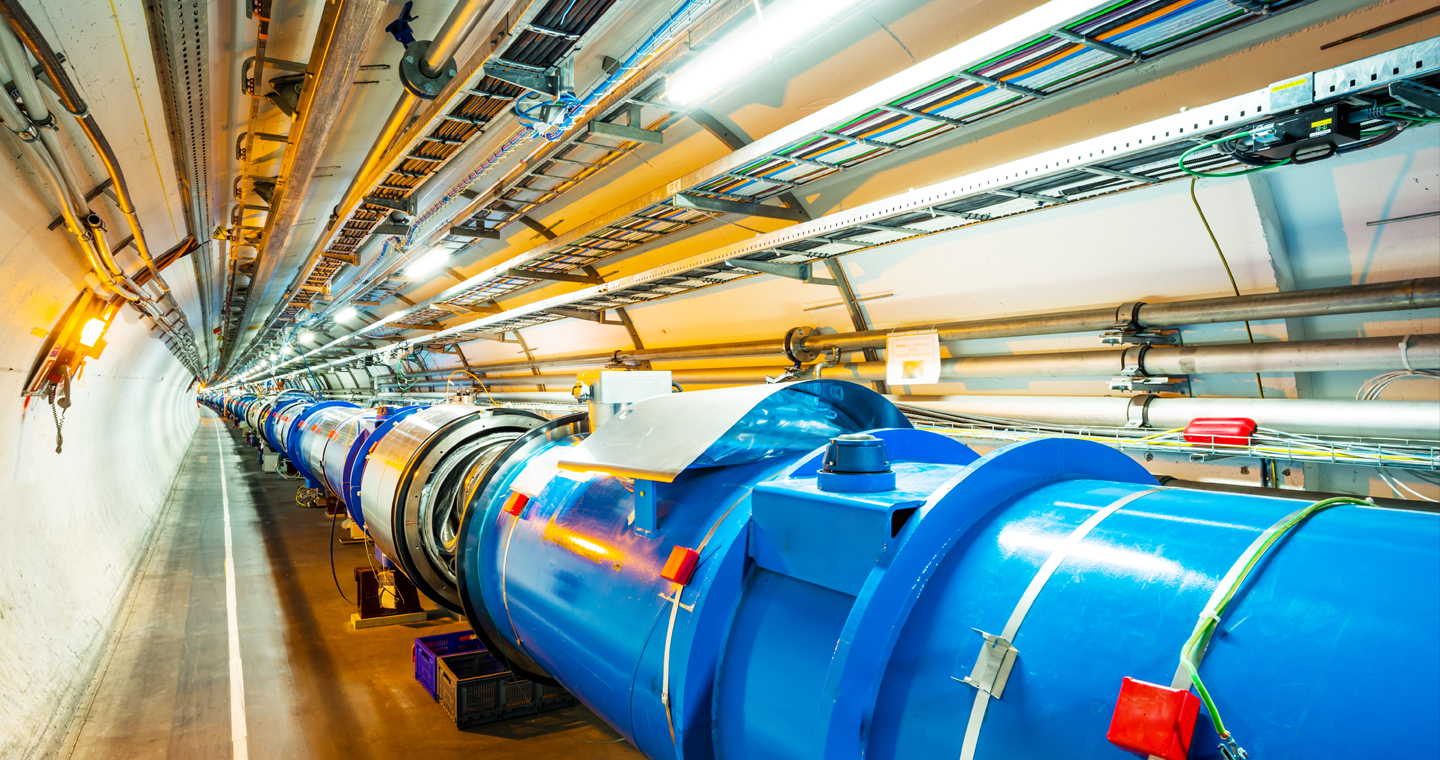

Photonis developed custom Hybrid Photo Diodes for use in CERN, in support of the LHCb RICH1 system.
Read more about it here.
