EBNocturn 2 Mpx

The most powerful digital night vision camera made for military night vision, weapon sights, helmet mounted vision, and precision targeting.

High resolution Global Shutter sensor
Designed for surveillance under any low light conditions world wide
Optimized Image Quality
Enhanced Image processing for noise reduction
1064 nm laser detection capability

Technical information

Download the specification

Camera Specifications
Sensor 2Mpx EBCMOS
Resolution 2048 x 1024 Pixels
Format 1” (16mm diagonal)
Frame rate 60 fps full resolution - 3G SDI video output
Spectral range 500 – 930 nm in night mode 930 – 1100 nm in day mode
HVPSU Autogated High Voltage, including day mode protection
Limiting resolution 90 lp / mm
Shutter Mode Global
Operational range Limited daylight to overcast starlight
Minimum face plate illumination 10-5 Lux @ 60fps

Description

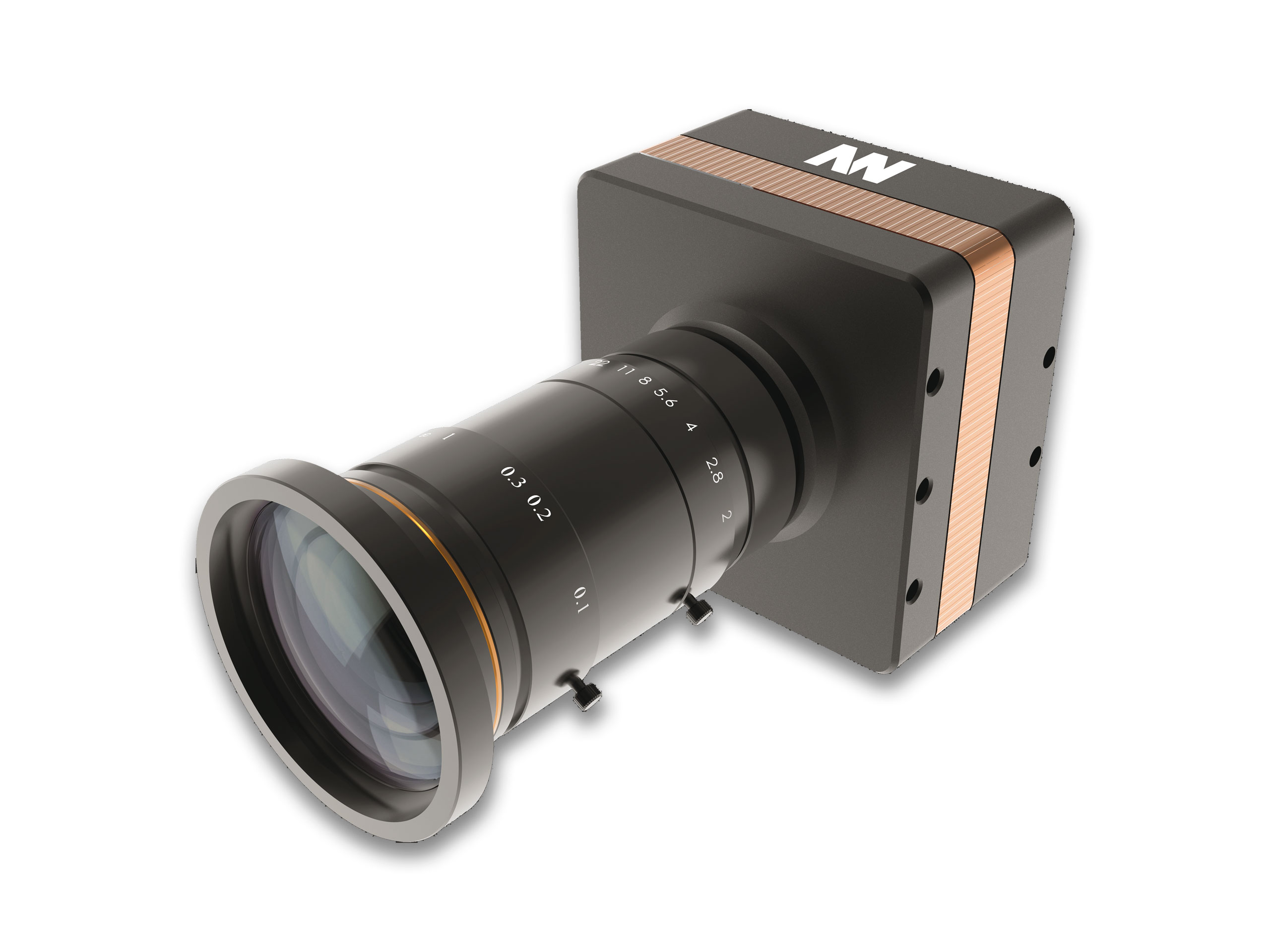

The EBNocturn is a digital image intensifier camera that provides outstanding image quality at very low light level. It was specifically designed for integration into imaging systems such as Observation sights or vehicle platform. It’s size, weight, and low power has been designed to ease the integration into any kind of optoelectronic system.

Features

  • Extremely low noise sensor
  • Designed for night observations devices
  • Under any low light conditions worldwide
  • Optimized Image Quality
  • 1064 nm laser detection capability

Movies

EBNOCTURN 2Mpx EBNOCTURN at Stonehenge

Digital Night Vision Camera Photonis EB NOCTURN 2 Mpx

Documentation

Specifications

EBNOCTURN - Specifications(PDF file, 519.95 KB)
EBNocturn leaflet(PDF file, 1.01 MB)

Brochure

NOCTURN Cameras Brochure(PDF file, 726.69 KB)
