EBNocturn 1.3 Mpx

The most powerful digital night vision camera made for military night vision, weapon sights, helmet mounted vision, and precision targeting.

Ultra Low Light Level down to 10 μlux
High frame rate - No Latency
Outstanding Image Quality
Optimized resolution for Mobility Application

Technical Information

Download the specification

Camera Specifications
Sensor Lynx EBCMOS
Resolution 1280 x 1024 Pixels
Format 1” (16mm diagonal)
Frame rate Up to 60 fps full resolution
Spectral range 500 – 930 nm in night mode 930 – 1100 nm in day mode
HVPSU Autogated High Voltage, including day mode protection
Limiting resolution 51 lp / mm (1280 TV lines)
Shutter Mode Rolling
Operational range Limited daylight to overcast starlight
Minimum face plate illumination 10-5 Lux @ 60fps

Description

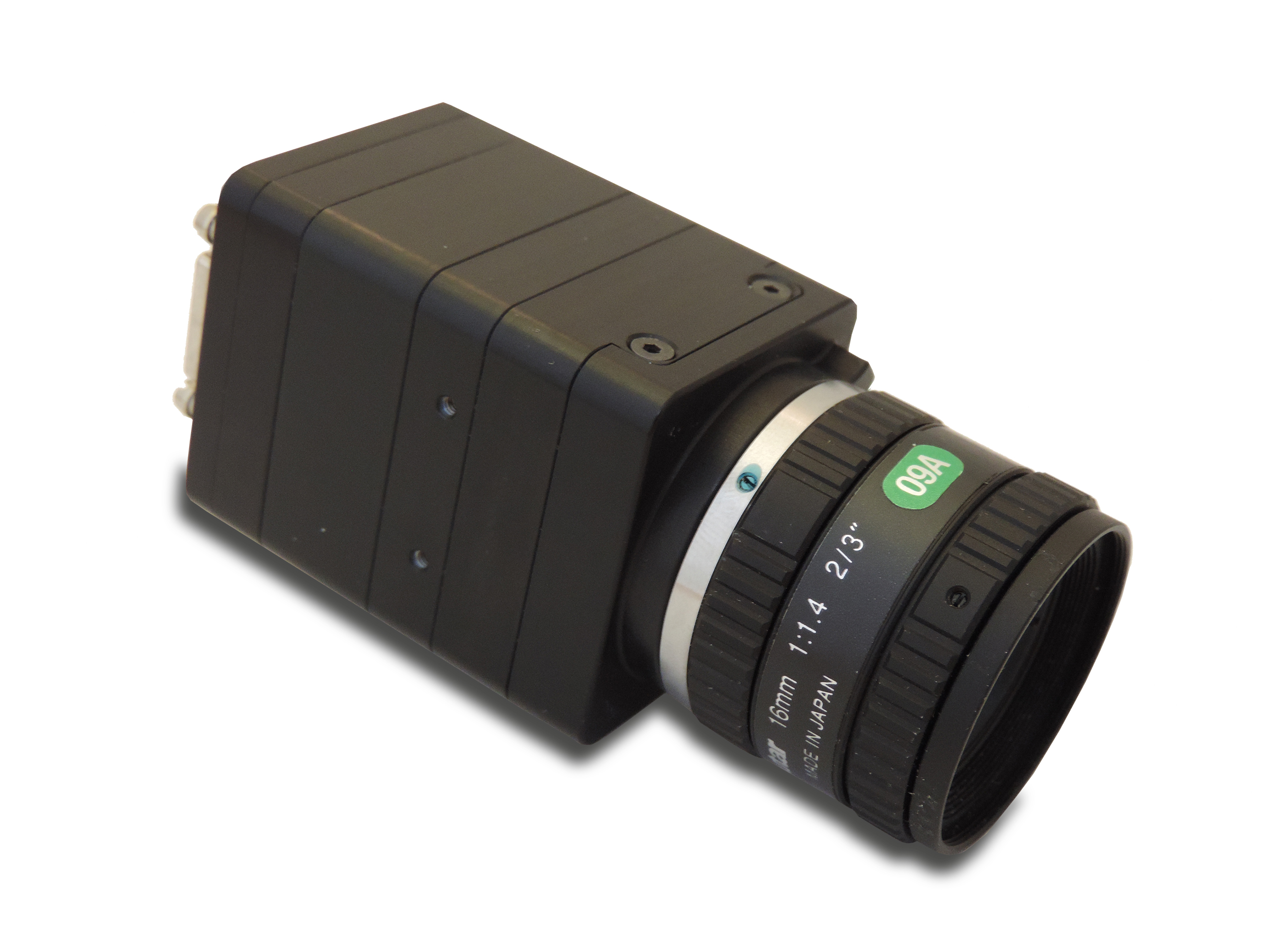

The EB Nocturn is a digital image intensifier camera that provides outstanding image quality at very low light level. It was specifically designed for integration into imaging systems such as helmet mounted system, weapon sights or vehicle platform. It’s size, weight, and low power has been designed to ease the integration into any kind of optoelectronic system.

Features

  • Extremely low noise sensor
  • Designed for portable / mobility purposes
  • Under any low light conditions worldwide
  • Optimized Image Quality
  • Low power (no cooling)
  • 1064 nm laser detection capability

Movie

DV-vehicle-EBNocturn

Digital Night Vision Camera Photonis EB NOCTURN 1.3 Mpx

Documentation

Specifications

EBNOCTURN - Specifications(PDF file, 519.95 KB)
EBNocturn leaflet(PDF file, 1.01 MB)

Brochure

NOCTURN Cameras Brochure(PDF file, 726.69 KB)
